| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) |
| Graphics | 1 x VGA port 1 x HDMI port |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Maximum Memory | Max. 96GB |
| Slots | 2 x DIMM slots |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) |
| Type | DDR5 |
| Connector & Ports | |
| Audio | 3 x Audio jacks |
| HDMI | 1x HDMI |

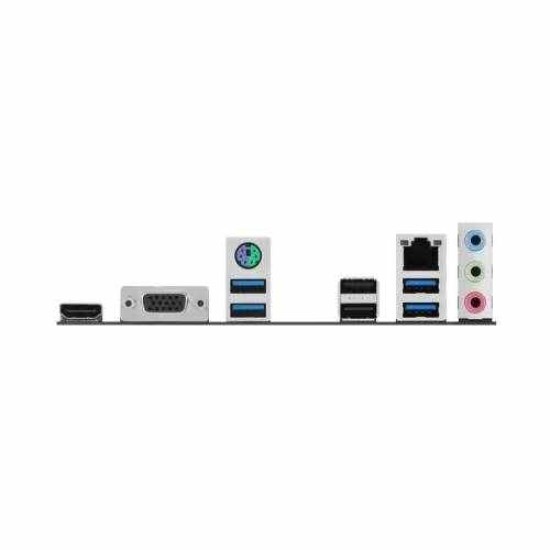

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRMv - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | |
| Other Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Warranty | 3 Years Warranty |

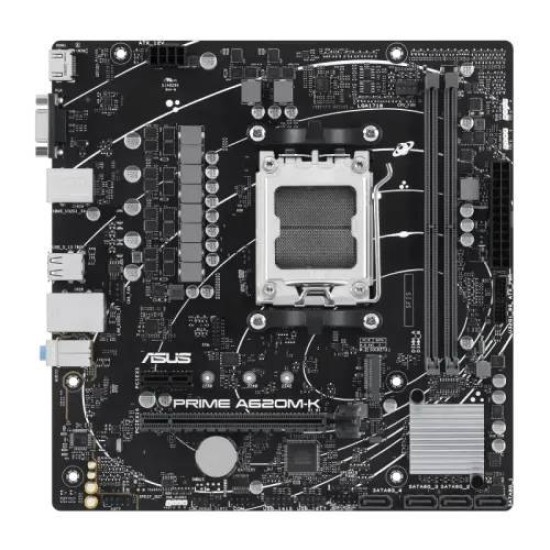

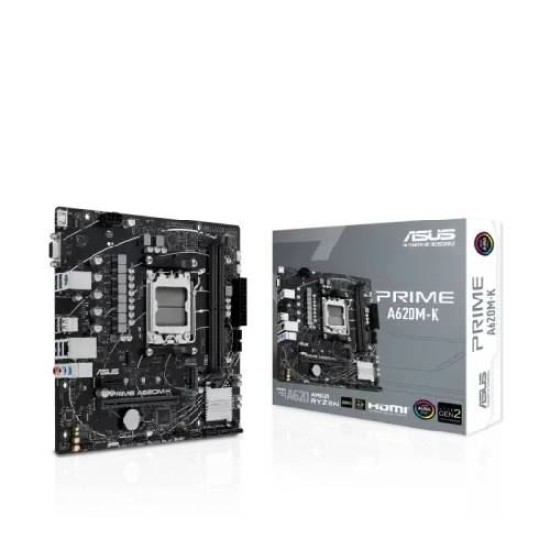

The Asus PRIME A620M-K AM5 mATX Motherboard is designed to deliver dependable performance, modern connectivity, and excellent compatibility for anyone building a next-generation AMD system. Built around the AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring strong processing power for gaming, content creation, and everyday multitasking. Powered by the AMD A620 chipset, this board provides a stable foundation with essential features that make it ideal for budget-friendly yet powerful PC builds. The motherboard supports the newest DDR5 memory technology, allowing speeds up to 7200+ MHz (OC) and a maximum capacity of 96GB, giving users the bandwidth and responsiveness needed for heavy workloads. Its PCIe 4.0 x16 slot ensures compatibility with modern graphics cards, while an M.2 PCIe 4.0 x4 slot allows high-speed NVMe SSDs for faster system boot and application load times. Additionally, 4 SATA 6Gb/s ports support traditional storage drives. Connectivity is made easy with a total of 12 USB ports, including USB 3.2 Gen 1 on both the front and back for high-speed data transfer. The rear panel includes HDMI and VGA outputs, offering flexibility for various display setups. The Realtek 1Gb Ethernet provides stable network performance, while the Realtek 7.1 Surround Sound audio codec delivers clear and immersive sound. For cooling, the board includes CPU and chassis fan headers, and its aluminum heatsink design enhances thermal performance. Asus’s signature reliability features—such as 5X Protection III, SafeSlot Core, LANGuard, and Q-Design—ensure durability, safety, and easier installation. With support for Aura Sync RGB, Armoury Crate, and AI-powered tools, the Asus PRIME A620M-K brings modern functionality at an affordable price, making it an excellent choice for versatile PC builds.
